European Class B standard
It adopts B-wclass(prE-13060), with 3-times per-vacuum preceding vacuum drying. Residual humidity is <0.2; vacuum measurement reaches-0.70bar.It sterilizes and sanitizes miscellaneous packed or unpacked medical instruments, whether solid or A-type hollow, whether with multi-apertures or inset piper. Lt efficiently rid air from every hollow area of any hollow instrument, such as hand-piece, making sure that water steam reaches every corner. It is installed with BOWIC&DICK which measures the penetrationof water steam.
Optional accessories: A micro-printer, recording the whole process of sterilizing
V/Hz
Power (W)
Capacity(L)
Chamber size (mm)
Packing size
Weight
220/50
2300
22
250X450
700X610X530
65KGS(NET: 48KGS)
?
?

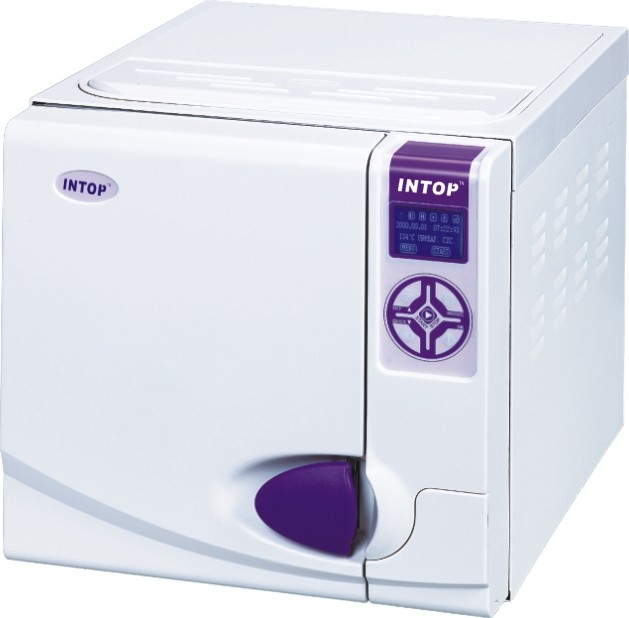

Autoclave Model-22B
European Class B standard
It adopts B-wclass(prE-13060), with 3-times per-vacuum preceding vacuum drying. Residual humidity is <0.2; vacuum measure- ment reaches-0.70bar.It sterilizes and sanitizes miscellaneous packed or unpacked medical instruments, whether solid or A-type hollow, whether with multi-apertures or inset piper. Lt efficiently rid air from every hollow area of any hollow instrument, such as hand-piece, making sure that water steam reaches every corner. It is installed with BOWIC&DICK which measures the penetrationof water steam.
Optional accessories: A micro-printer, recording the whole process of sterilizing
V/Hz
Power (W)
Capacity(L)
Chamber size (mm)
Packing size
Weight
220/50
2300
22
250X450
700X610X530
65KGS(NET: 48KGS)
?
Autoclave Model LCD-17B
European Class B standard
It adopts B-wclass(prE-13060), with 3-times per-vacuum preceding vacuum drying. Residual humidity is <0.2; vacuum measurement reaches-0.70bar.It sterilizes and sanitizes miscellaneous packed or unpacked medical instruments, whether solid or A-type hollow, whether with multi-apertures or inset piper. Lt efficiently rid air from every hollow area of any hollow instrument, such as hand-piece, making sure that water steam reaches every corner. It is installed with BOWIC&DICK which measures the penetrationof water steam.
Optional accessories: A micro-printer, recording the whole process of sterilizing
V/Hz
Power (W)
Capacity (L)
Chamber size (mm)
Packing size
Weight
220/50
1800
17
250X355
700X610X530
56KGS(NET: 46KGS)
?

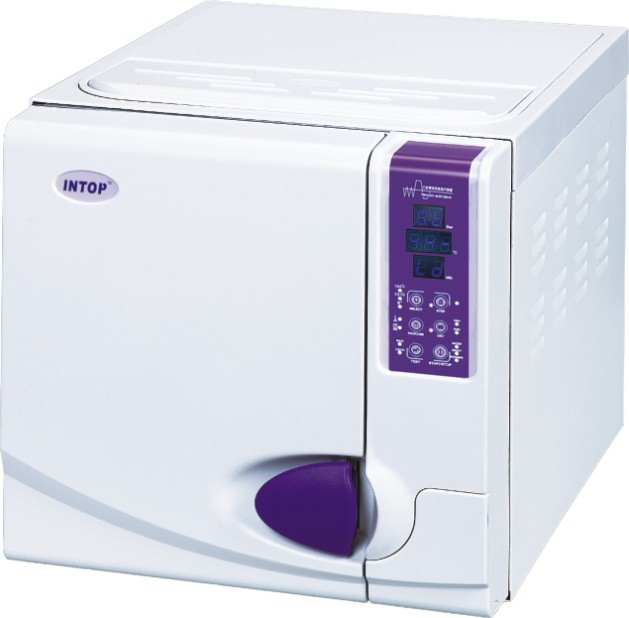

Autoclave Model-17B
European Class B standard
It adopts B-wclass(prE-13060), with 3-times per-vacuum preceding vacuum drying. Residual humidity is <0.2; vacuum measure- ment reaches-0.70bar.It sterilizes and sanitizes miscellaneous packed or unpacked medical instruments, whether solid or A-type hollow, whether with multi-apertures or inset piper. Lt efficiently rid air from every hollow area of any hollow instrument, such as hand-piece, making sure that water steam reaches every corner. It is installed with BOWIC&DICK which measures the penetrationof water steam.
Optional accessories: A micro-printer, recording the whole process of sterilizing
V/Hz
Power (W)
Capacity(L)
Chamber size (mm)
Packing size
Weight
220/50
1800
17
250X355
700X610X530
56KGS(NET: 46KGS)
?
?

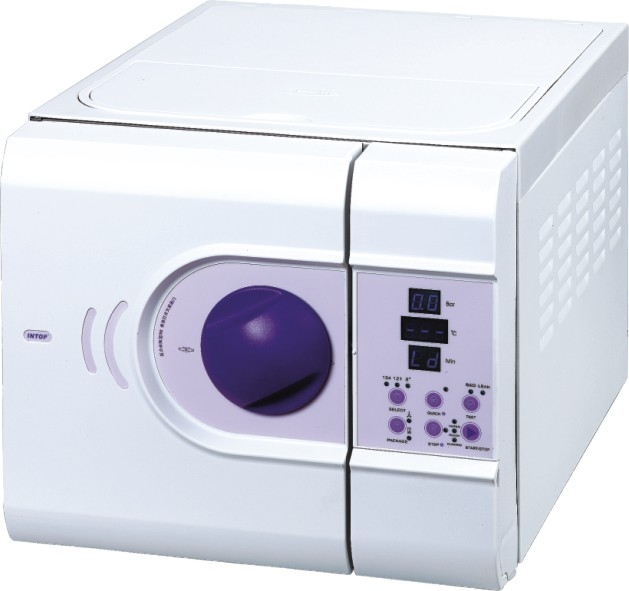

Autoclave Model-15B-1

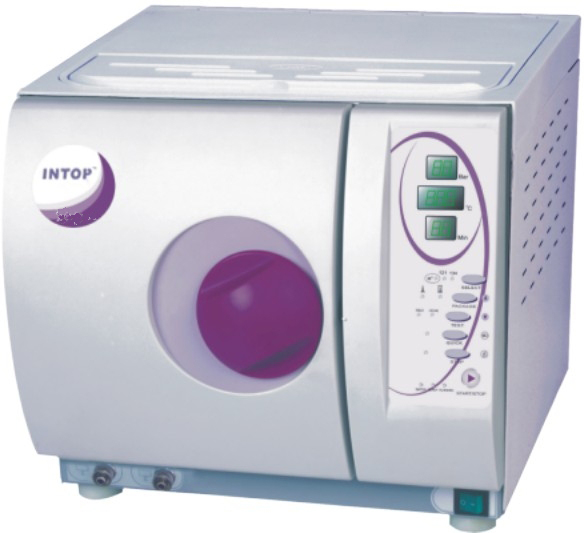

Autoclave Model-15B-2
European Class B standard
It adopts European B standard, with 3-times per-vacuum preceding vacuum drying. Residual humidity is <0.2; vacuum measure- ment reaches-0.70bar.It sterilizes and sanitizes miscellaneous packed or unpacked medical instruments, whether solid or A-type hollow, whether with multi-apertures or inset piper. Lt efficiently rid air from every hollow area of any hollow instrument, such as hand-piece, making sure that water steam reaches every corner. It is installed with BOWIC&DICK which measures the penetrationof water steam.
Optional accessories: A micro-printer, recording the whole process of sterilizing
V/Hz
Power (W)
Capacity (L)
Chamber size (mm)
Packing size
Weight
220/50
1800
15
230X370
660x550x480
50KGS(NET: 39KGS)
?

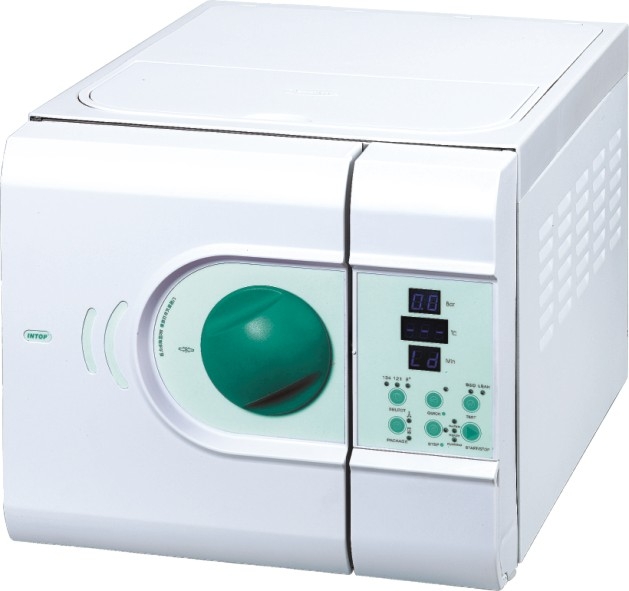

Autoclave Model-15S-1

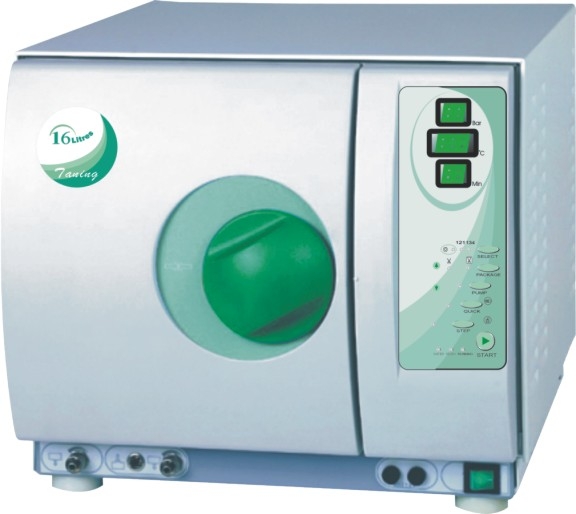

Autoclave Model-15S-2
?
European Class S standard
It adopts European S standard with one times pre-vacuum and vacuum drying function and efficient quick spraying steam generator.
With pre-vacuumizing function, it can be used for solid or hollow instruments in special evvelop packets, small devices with Mini printerr can be attached to record the sterilizing process
Optional accessories: A micro-printer, recording the whole process of sterilizing
V/Hz
Power (W)
Capacity (L)
Chamber size (mm)
Packing size
Weight
220/50
1800
15
230X370
660x550x480
50KGS(NET: 39KGS)
?

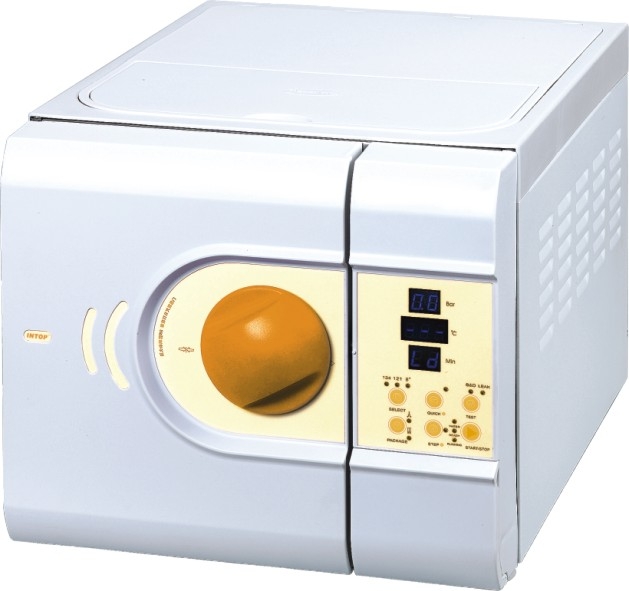

Autoclave Model-15N-1

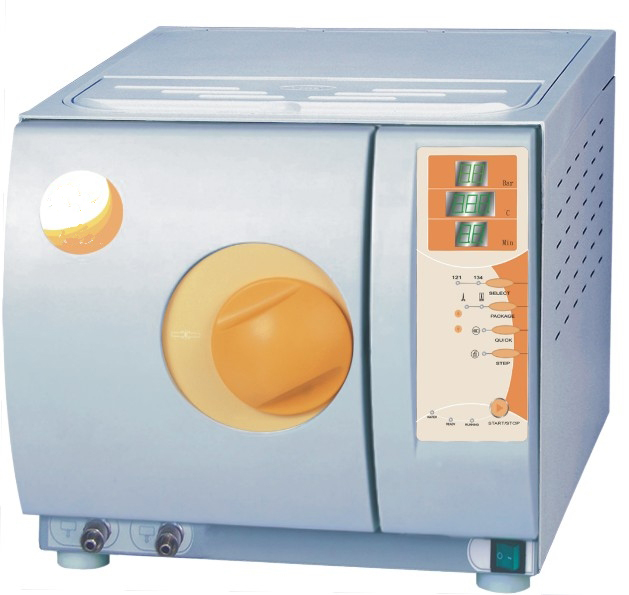

Autoclave Model-15N-2
European Class N standard
Adopting European N standard, with thermal vacuumizing and drying function, it can be used for A type hollow instruments and solid instruments.
Thermodynamic vacuum guarantees elimination of cold air from the cavity and makes sure of perfect saturation of water dream.
Three sterilizing water quantity selections are respectively for different material, which embodies the individualized service.
Automatic malfunction detecting system makes easy maintaining
Optional accessories: A micro-printer, recording the whole process of sterilizing
V/Hz
Power (W)
Capacity (L)
Chamber size (mm)
Packing size
Weight
220/50
1800
15
230X370
660x550x480
50KGS(NET: 39KGS)
?

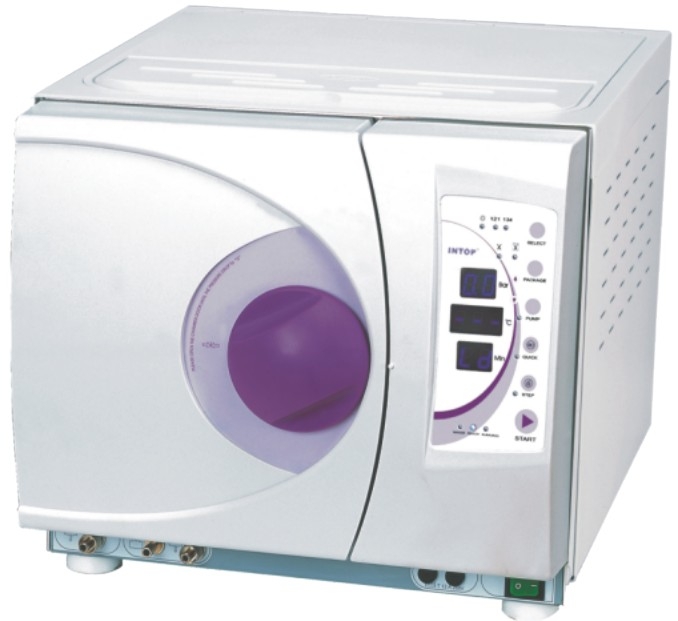

Autoclave Model-12B
European Class B standard
It adopts European B standard, with 3-times per-vacuum preceding vacuum drying. Residual humidity is <0.2; vacuum measure- ment reaches-0.70bar.It sterilizes and sanitizes miscellaneous packed or unpacked medical instruments, whether solid or A-type hollow, whether with multi-apertures or inset piper. Lt efficiently rid air from every hollow area of any hollow instrument, such as hand-piece, making sure that water steam reaches every corner. It is installed with BOWIC&DICK which measures the penetrationof water steam.
Optional accessories: A micro-printer, recording the whole process of sterilizing
