The Leading Dental Equipment Supplier

SHANGHAI INTOP MEDICAL EQUIPMENT CO.,LTD.







Self-sealing sterilization pouch

1、Triple seal
Three separate heat-sealed rails prevent possible Penetration or tearing by sharp instruments.
2、Triple Heat Processed
Each of the three rails is heat-sealed three times and chilled back to room temperature. This process produces a seal that is consistent, strong and minimizes any shattering or tearing.
3、Secure Seal
Additional seal at chevron for added protection against instrument breaching.
4、Medical Grade Paper
Wet strrength treated, virgin medical grade paper that meets or exceeds medical pouch standards.
5、Blue Tinted Transparent Film
Allows viewing of the contents while providing easy identification of any compromise in the film casued by puncturing or tearing.
6、Wide Self-Seal Adhesive Strip
Wider sealing area of strip securely seals pouch and provides sterilization integrity of contents during stor-age (minimum of two years when properly sealed and processed). Eliminates need for tape or heat sealer.
7、Fold
Allows for accurate folding of ahdesive strip to form an airtight seal which maintains the integrity of the pouch during storage after sterilization.
8、Complete Film/Paper Separation
The high quality of metrials and manufacturing pro-cess assures a consistently clean separation (peeling) of the film from the paper, maintaining the sterile integrity of the contents.
9 Thumb Notch
Assures easy opening of pouch.
10、Corner Tack Seals
Our three tack seals on each corner prevent curling
and posssible separation after sterilization. In addition it prevents the collection of dust and other contaminants in the seal area.
11、Process Indicator Arrows
Each pouch has easy to read color changing process
indicator arrows to signal exposure to sterilization con- ditions. Compatible with steam, chemical vapor and EtO sterilization methods.

Code

Inch

size

Packing

SP083160

3.25 x 6.25

83 x 160 mm

200pcs/box

10boxes/ctn

SP070260

2.75 x 10

70 x 260 mm

200pcs/box

10boxes/ctn

SP090260

3.5 x 10

90 x 260 mm

200pcs/box

10boxes/ctn

SP135260

5.25 x 10

135 x 260 mm

200pcs/box

10boxes/ctn

SP135280

5.25 x 11

135 x 280 mm

200pcs/box

10boxes/ctn

SP135300

5.25 x 11.75

135 x 300 mm

200pcs/box

10boxes/ctn

SP135380

5.25 x 15

135 x 380 mm

200pcs/box

10boxes/ctn

SP155260

6 x 10

155 x 260 mm

200pcs/box

10boxes/ctn

SP190360

7.5 x 13

190 x 360 mm

200pcs/box

5boxes/ctn

SP305430

12 x 17

305 x 430 mm

200pcs/box

5boxes/ctn

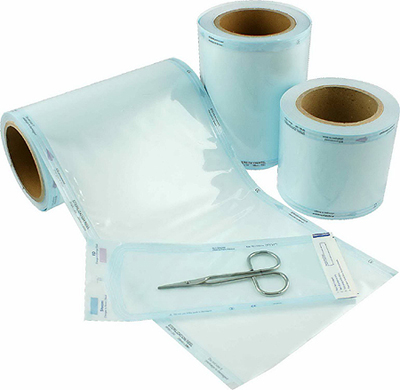

Roll sterilization pouches

An economical, convenient way to pack instruments, swabs and other other items for sterilization. Reels pouch have easy to read color process indicators to signal exposure to sterilization conditions. Blue tined plastic aids in the detection of puncture holes causes by pointed/sharp instruments.
Available in 10 covenient widths, use only the width and length requried.
For use in steam, chemical vapor and ETO sterilizers,
Produced by medical-grade paper and delaminated/transparent film.
The pouch could breath but don¨t leaking, the sterilized process is quick and downright
The user could choose the length of the pouch according the length of the sterilized object
At the front of the pouch, there are two signers hich will change color when they are sterilized by EO & steam accordingly
Easy to pen and no fibre, assure the safty


Code

Size

Packing

RP50200

50mm x 200m

24reels/ctn

RP55200

55mm x 200m

20reels/ctn

RP75200

75mm x 200m

16reels/ctn

RP10200

100mm x 200m

12reels/ctn

RP15200

150mm x 200m

8reels/ctn

RP20200

200mm x 200m

4reels/ctn

RP25200

250mm x 200m

4reels/ctn

RP30200

300mm x 200m

4reels/ctn

RP35200

350mm x 200m

4reels/ctn

RP40200

400mm x200m

4reels/ctn
