The Leading Dental Equipment Supplier

SHANGHAI INTOP MEDICAL EQUIPMENT CO.,LTD.

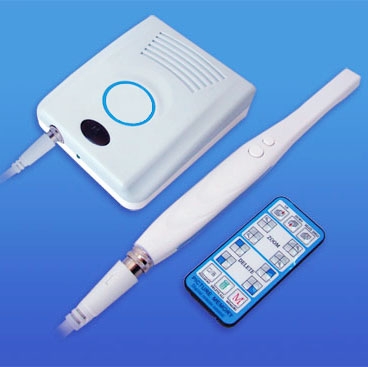

Model-OC16: 1.3 mega pixels intra-oral camera

*Pixel:1.3 mega
*High brightness images
*Simple operation and installation
*Light and easy mobility
*Equipped with anti-fog, non-spherical lens
*Super-wide automatically adjusting-focus lens
*Handpiece holder with automatic power-off function
*VGA output function.
*For both of freeze device and handpiece are with
quick-connector function.
*It can be divided 1,4,9 images on the screen
*It can be connected with external infrared sensor
without any failure.
*With specific remote control.
*Image sensor: 1/4" sony CCD
*Image resolution: 1.3 mega pixels
*Lamp: 6 pcs white LED
*Accumulation point: 5mm~50mm
*photographing visual angle: 70 degree
*:Cable length: 2m
*Power input: Handpiece: DC 5V (250mA)
*Freeze device: DC 5V, 1500mA
*Compatible with Windows XP SP2/Windows Vista

Model-OC17: 1.3 mega pixels intra-oral camera

*Pixel:1.3 mega
*High brightness images
*Simple operation and installation
*Light and easy mobility
*Equipped with anti-fog, non-spherical lens
*Super-wide automatically adjusting-focus lens
*Handpiece holder with automatic power-off function
*With Video, S-video, USB and VGA output function.
*It can be quickly deleted image, re-captured, enlarge
function and it also can be saved 4x28 PCS picture
totally.
*For both of freeze device and handpiece are with
quick-connector function.
*It can be divided 4 images on the screen, and be
switched very easily to each other between 1 image
and 4 images.
*It can be connected with external infrared sensor
without any failure.
*With specific remote control.
*Image sensor: 1/4" sony CCD
*Image resolution: 1.3 mega pixels
*Lamp: 6 pcs white LED
*Accumulation point: 5mm~50mm
*photographing visual angle: 70 degree
*:Cable length: 2m
*Power input: Handpiece: DC 5V (250mA)
*Freeze device: DC 5V, 1500mA
*Compatible with Windows XP SP2/Windows Vista

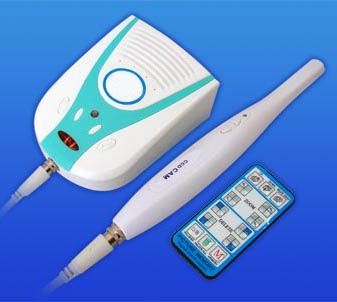

Model-OC18: 2.0 mega pixels intra-oral camera

* High brightness images
* Simple operation and installation
* Light and easy mobility
* Equipped with anti-fog, non-spherical lens
* Super-wide automatically adjusting-focus lens
* Handpiece holder with automatic power-off function,
also availabe for wireless.
*With jack Video & S-Video output to connect with TV,
USB output to connect with PC, VGA output to connect
with LCD Monitor.
* Image sensor: 1/4 sony CCD
* Image resolution: 2.0 mega pixels
* Lamp: 6 pcs white LED(5600K)
* Accumulation point: 5mm~50mm
* Photographing visual angle: 70 degree
* Frequency: 5725~5875MHz
* Compatible with Windows XP SP2/Windows Vista
* Receiving sensitivity: 95dB

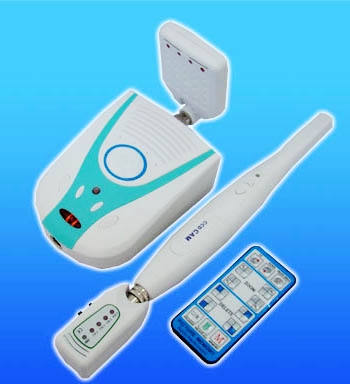

Model-OC20: Wireless 2.0 mega pixels intra-oral camera

*Availabe for wire set also.
*High brightness images
*Simple operation and installation
*Light and easy mobility, with VIDEO & S-VIEDO port
to connect with TV, USB port to connect with
PC/Notebook,VGA port to connect with Monitor.
*Equipped with anti-fog, non-spherical lens
*Super-wide automatically adjusting-focus lens
*Handpiece holder with automatic power-off function
*To use wireless intraoral camera, we can capture
teeth images of patient and then transmit into
computer on wireless LAN.
*Without any USB cable, it let dentist easily operate it,
save images more quickly, and conveniently.
*Image sensor: 1/4" sony CCD
*Image resolution: 2.0 mega pixels
*Lamp: 6 pcs white LED(5600K)
*Accumulation point: 5mm~50mm
*Photographing visual angle: 70 degree
*Frequency: 5725~5875MHz
*Message output: USB 2.0
*Channel selection: 4 channel
*Receiving sensitivity: 95dB
*Compatible with Windows XP SP2/Windows Vista
